Luna County Sheriff Complex
       
     
Luna County Sheriff Complex

Deming, NM

LTSE provided consulting engineering services for the Luna County Sheriff Law Enforcement high-security complex. The new structural design consisted of single story complex with multiple material types. Structural steel, light gauge steel, trusses, reinforced masonry, and concrete were utilized in this structure. Special detailing for detention areas and special use was completed for this facility. Coordination with security consultants and suppliers was provided by LTSE.

Contractor: Weil Construction

Archiect: R2 Architectural

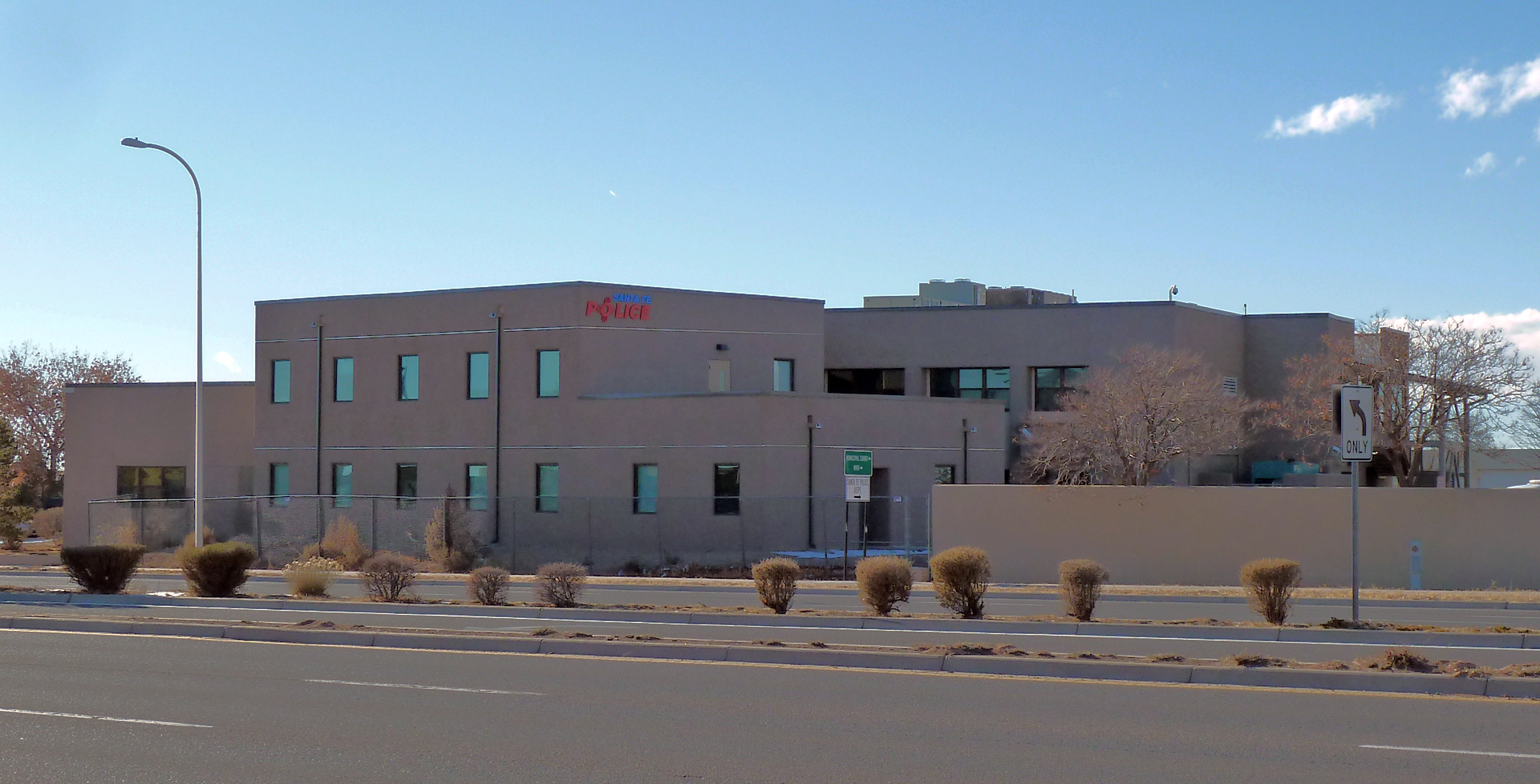

Santa Fe Police Station
       
     
Santa Fe Police Station

Santa Fe, NM

LTSE provided consulting engineering services for the Santa Fe Police Station high-security addition. The new structural design consisted of a two-story addition. The new design consisted of steel and concrete. Lateral stability proved to be a challenge with the building orientation to the existing structures. Connection were established to the existing buildings. LTSE provided services for coordination and revisions to the design based on the discovered conditions of the existing structures.

Contractor: Sarcon Construction

Architect: Lloyd & Associates

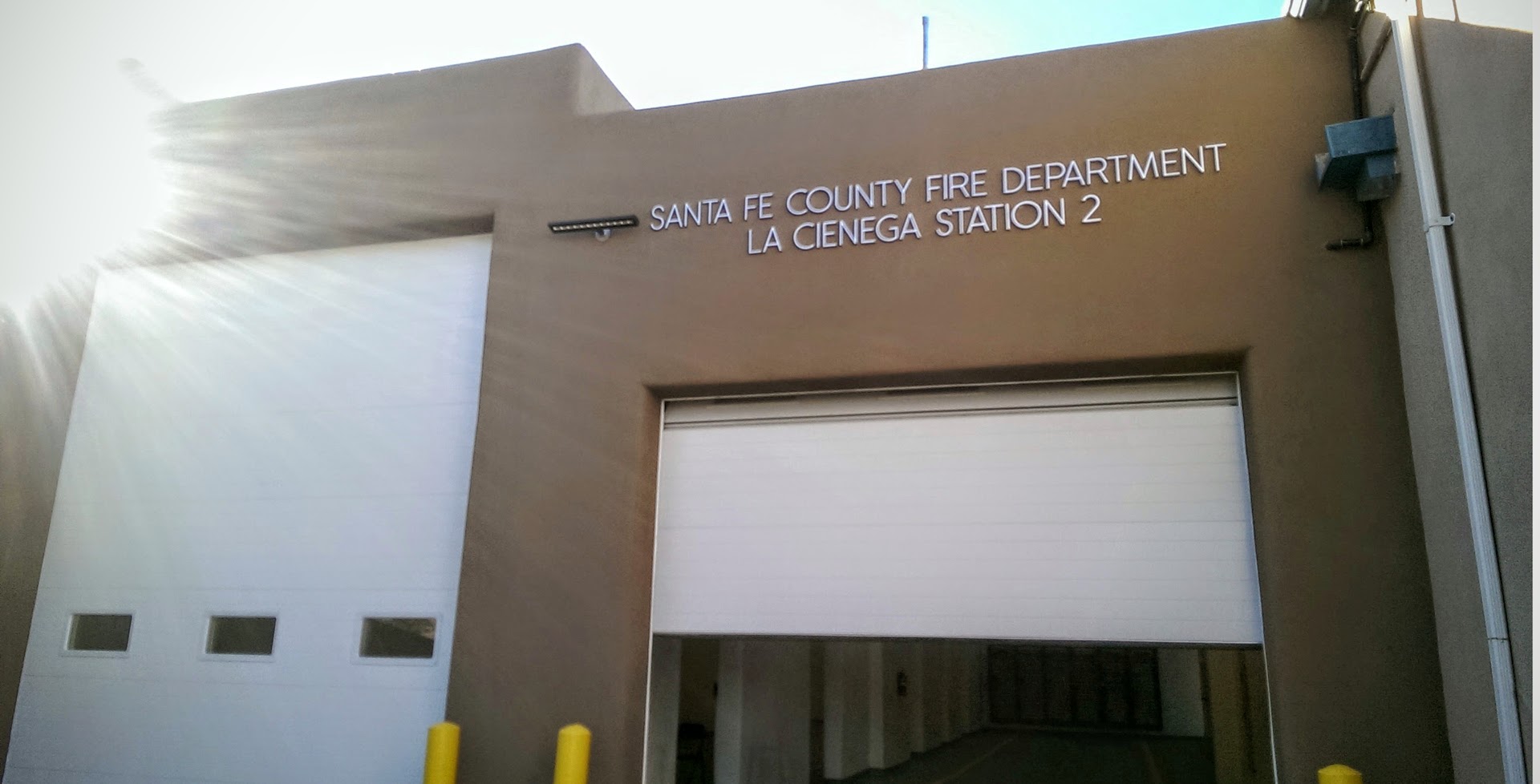

La Cienega First Station No. 2
       
     
La Cienega First Station No. 2

Santa Fe, NM

The facility is a mixed use community center and fire station. The addition work consisted of an addition of an apparatus bay with the use of in-slab trench drains and a waffle slab foundation system to accommodate the high clay soils on the site. The addition was framed with steel open-web bar joists supported by load bearing CMU walls, which, were retaining in some cases. The existing spaces were retrofit to accommodate additional loading such as new HVAC roof top units and new window/door locations. Exit/entrance portals were framed with steel beams and columns on sonotube type foundation systems.

Contractor: Anissa Construction

Architect: Riskin Associates Architecture

Glorieta Fire Station No 2
       
     
Glorieta Fire Station No 2

Glorieta, NM

The new building consisted of 3 apparatus bays, office areas, classrooms, and storage areas. The roof framing consisted of open-web steel trusses and metal decking. Load bearing walls were constructed with light gauge steel studs and wood shear panels. Clerestory windows above the apparatus bay windows required the use of wide flange and HSS frame systems to support both vertical and out-of-plane forces. Foundation design and detailing considered the retaining walls to accommodate a fire pump pit, apparatus bay trench drains with sloping slabs and CMU walls at the perimeter of the apparatus bays.

Contractor: LLR Construction

Architect: Riskin Associates Architecture

Arroyo Hondo Fire Station
       
     
Arroyo Hondo Fire Station

Arroyo Hondo, NM

Description coming soon

Galisteo Fire Station
       
     
Galisteo Fire Station

Galisteo, NM

Description coming soon
